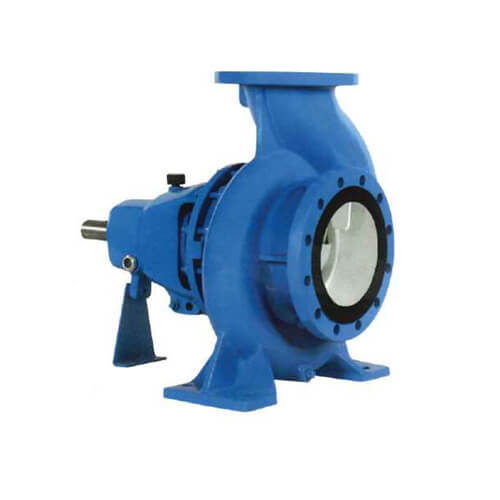

Centrifugal Water Pumps - Type WP DIN 24255 / EN 733
Centrifugal Water Pumps - Type WP DIN 24255 / EN 733 - Image 2

Centrifugal Water Pumps – Type WP DIN 24255 / EN 733

OPERATING RANGE

  • Capacity: Up to 550 M3/Hr
  • Head: Up to 100 Metres (328 Feet)
  • Temperature: Up to 90°C (1 94°F)
  • Casing Pressure: Up to 16 Kg/cm2
  • Pump Size: DN 32 mm to DN 150 mm
  • Speed: Up to 2900 rpm
  • Director of rotation: Clock wise from Drive End
  • No. of models: 37 Models

Details/Data Download

Categories: ,

Applications

WP type pumps are used in Air – Conditions plants, Fire Fighting Applications, Food Process Industry, Sugar Industry, Paper & Pulp Industry. Dyeing Industry, Paper & Pulp Industry, Dyeing Industry, Steel plants. Seawater Desalination Plants, Power Stations and Absorption Plants in Environmental Engineering & Dewatering purpose.

Handling of all types of Clear – Non-aggressive Liquids, Condensate Water up to 90°C, Irrigation, General Water Supply in Agricultural & etc…
