More Specification

TECHNICAL INFORMATION
For the applications where the value of N.P.S.H. available on the plant is very low, the pumps can be
equipped with an inducer in order to reduce the required N.P.S.H.

ACCESSORIES

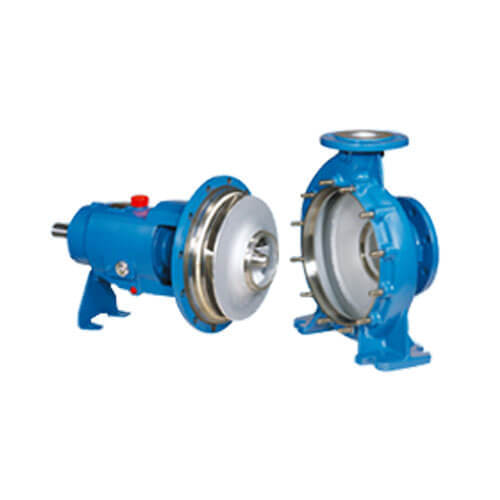

The pump line R is of the back-pull-out type, therefore, where the pumping group is equipped with a spacer type coupling,
the complete rotor can be removed from pump casing without disturbing piping and driver.
Hence the group does not need to be realigned making much more easier overhauling operations.
The pump can also be fitted, according to the liquid being pumped, with single or double, balanced or unbalanced mechanical seals.

PERFORMANCES
Capacity up to 1500 m3/hHead up to 130 m liquid column
Speed from 720 to 3500 R.P.M.
The pumps can operate under positive suction head or under suction lift after they have been primed.

MAX. ALLOWABLE TEMPERATURES AND PRESSURES
Pump execution.          Temperature         Pressure
Cast iron                        -30 to +120ºC       16 Kg/cm2
Cast iron                       +120 to +170ºC      10 Kg/cm2
Cast steel
Stainless steel and      -50 to 120ºC         16 Kg/cm2
special alloys up to     +280ºC                  12.5Kg/cm2
