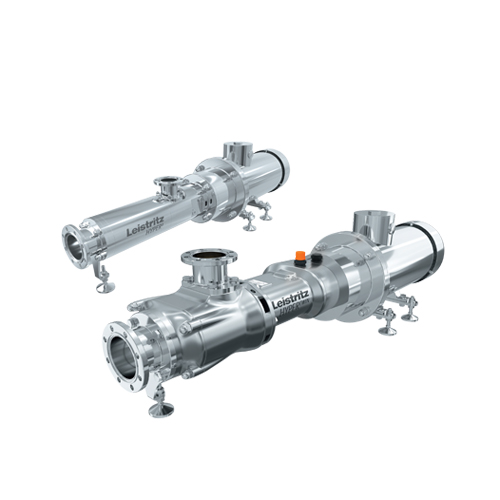

The Leistritz HYPER Pump Series comes as a new plug-and play solution with high pump performance and product protection – and as an option all-in-one solution in stainless steel, including an integrated motor drive. The unit is an eye-catcher thanks to its compact design, hygienic surfaces, easier cleaning inside and out. It answers to advanced demands on hygiene, efficiency and reliability.
HYPER3: POWERFUL. PATENTED. PRECISION DOSING.
The Leistritz HYPER3Â represents a pumping innovation with an unrivalled combination of performance and compact design. In it, the triple screw pump technology takes advantage of a hydrodynamic floatation principle, employed with a spotless track record in countless industrial applications. The result is a best-in-class answer to highest demands on product protection and precision dosing.
| Pump type | 20 | 30 | 50 |
|---|---|---|---|
| Flow rate (m³/h) | 0.02 – 2.6 | 0.1 – 8.8 | 0.2 – 22.7 |
| Differential pressure (bar) up to | 16 | 25 | 25 |
| Speed (rpm) up to | 3,000 | 3,000 | 3,000 |
| Particle size (Ø/mm) up to | 5 | 7 | 10 |
| Viscosity (cSt) | 0.5 – 1,000,000 | 0.5 – 1,000,000 | 0.5 – 1,000,000 |
HYPERTWIN: HIGHLY EFFICIENT. GENTLE ON PRODUCT AND PIECES.
The Leistritz HYPERTWIN is a further pumping innovation with high performance and flow rate balanced by product protection. The proven twin screw pump technology provides high pump performance on products with large air enclosures and chunky particles. It does so with ease and gentleness.
| Pump type | 100 | 130 | 150 |
|---|---|---|---|
| Flow rate (m³/h) | 0.27 – 51.4 | 0.7 – 106 | 1.29 – 191 |
| Differential pressure (bar) up to | 25 | 25 | 25 |
| Speed (rpm) up to | 3,600 | 3,000 | 3,000 |
| Particle size (Ø/mm) up to | 25 | 33 | 41 |
| Viscosity (cSt) | 0.5 – 1,000,000 | 0.5 – 1,000,000 | 0.5 – 1,000,000 |
| Temperature range (°C) | - 20 to 170 | - 20 to 170 | - 20 to 170 |
