More Specification

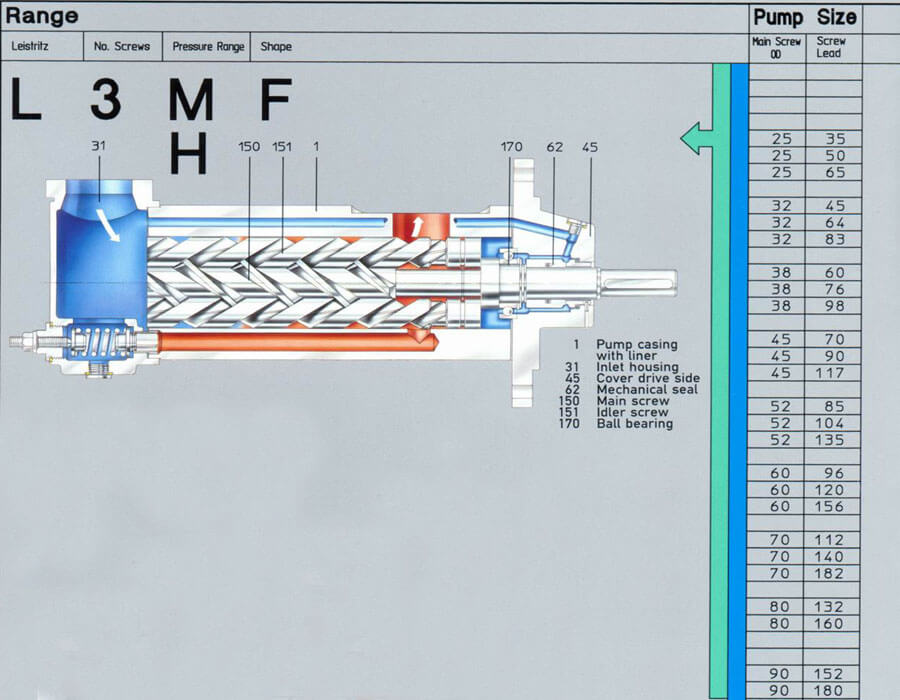

L3M
For high or low viscosity fluids with good lubricity, for medium pressure ranges up to 100 bar (1450 psi).
General Use

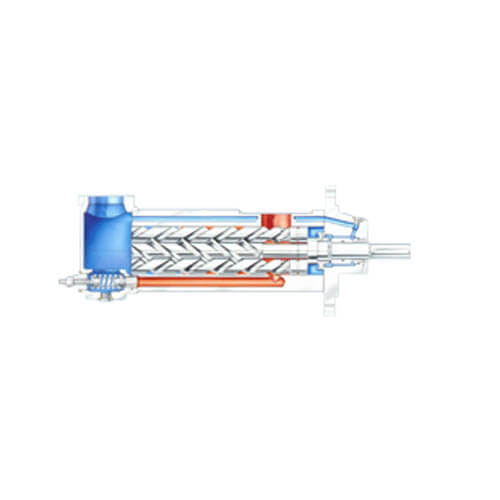

Leistritz screw pumps of the L3MF/MG series are triple screw, single volute, self-priming, positive displacement pumps for medium pressure duty, suitable for transport of non abrasive lubricating fluids.
Performance Data
Flow rate:
• MF: Max. 120 m ./h (530 GPM)
• MG: Max. 300 m ./h (1,320 GPM)
Differential pressure: Max. 80 bar (1,160 psi)
Viscosity: Max. 10,000 cSt
Pumping temperature: Max. 280БЛC (536БЛF)
