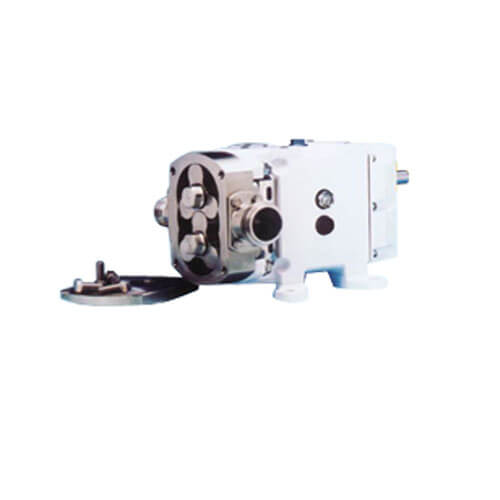

Lobe Pumps 24 Series - Hygienic Positive Displacement Pump

Lobe Pumps 24 Series – Hygienic Positive Displacement Pump

Adaptability
This is the key design concept. The pump utilizes ‘bolt on’ features which allow quick and easy interchange of parts to enable exact specification of the pump to suit any application….from stock!

Rugged Design
The bearing frame design utilizes large shaft diameters mounted in high specification taper roller bearings, fitted into rigid pillars which form an integral part of the high grade alloy housing. These ensure maximum shaft stiffness in order to avoid premature pump failure due to overpressure or other abuse.

Details/Data Download

Categories: , ,

More Specification

Body Materials316 Stainless Steel
Rotor316 Stainless Steel
Port TypeAll US and European standards
SealOptions include: Front-loaded single mechanical face- type seals of hygienic design. Materials include carbon, stainless steel and silicon carbide. Low-pressure flush seals use the same single mechanical seal with an additional housing.
Double mechanical seals use all the components from single seals. Front loaded single O-Ring seals. Front loaded double O-Ring seals. Multiple PTFE lip seal complete with controlled release food-grade grease injection system.
BearingsHigh specification taper roller bearings
Operating temperature -40 to 492ºF (-40 to 200ºC)
Approvals3A variants with Nitrile or EPDM elastomers
