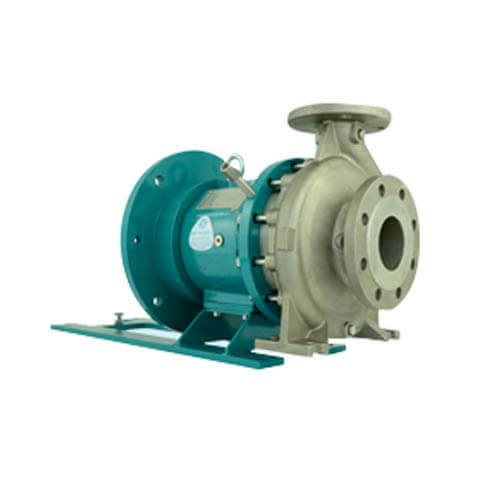

UTS-B Magnetic Drive Centrifugal Pumps

UTS-B Magnetic Drive Centrifugal Pumps

Metallic Magnetic drive Horizontal Process Centrifugal pumps

Materials : AISI 316 (1.4408)

End-suction – Long Coupled (UTS) and Close Coupled (UTS-B) execution

Versatility: Suitable for handling aggressive, toxic and hazardous liquids (low viscosity, clean or slightly contaminated) in the chemical, petrochemical and pharmaceutical industries, where the need of high safety standards is the first requirement.

Reliability: The UTS are made by stainless steel AISI 316 : on bare shaft execution, the pump is also equipped as a standard with reliable oil lubricated bearing bracket, especially developed to be suitable even under heavy duty service.

Categories: ,

More Specification

Performance 2900 rpmQ max = 80m3/h - H max = 65 mcl
Electric MotorsUTS-B: 0.75 kW(motor size 80) - > 18.5 kW (motor size 160)
UTS: 0.75 kW (motor size 80) - > 18.5 kW (motor size 160)
Temperature RangeUTS-B: -40ºC* - >+180ºC
UTS: -40ºC* - > +300ºC
* -100ºC special execution
Allowable Pressure RangeUTS series 125/160: 16 bar(20ºC)
UTS series 200: 16 bar (20ºC)
Flange ConnectionsUNI 1092-1/ISO 7005-1 PN 16, type B
Upon request, drilling slotted to match ANSI 150
Viscosity 1 cSt min - 200 cSt max
Allowable SolidsMax concentration: 2% by weight
Max particle size: 0,15 mm
