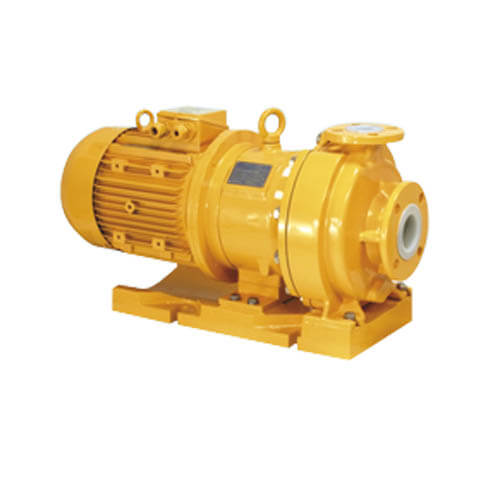

UTN-BL Magnetic Drive Centrifugal Pumps

UTN-BL Magnetic Drive Centrifugal Pumps

Plastic and Fluoroplastic Lined Magnetic drive Horizontal Process Centrifugal pumps

Lining: PP (Polypropylene), PVDF (Polyvinylidene fluoride), PFA (Perfluoroalkoxy)

End-suction – Long Coupled (UTN-L) and Close Coupled (UTN-BL) execution

Versatility: Suitable for handling corrosive,aggressive and hazardous liquids (low viscosity, clean or slightly contaminated) in the chemical, petrochemical and Pharma industries, where the need of high safety standards is the first requirement.

Reliability: The pump is equipped with reliable oil lubricated bearing bracket, especially developed to be suitable even under heavy duty service.

Categories: ,

More Specification

Shaft seal typeSealless Magnetic Drive
Design EN 22858; ISO2858
StandardISO 5199
Casing materialPFA Lined - PVDF Lined - PP Lined
Casing partitionRadially split
CasingVolute Casing
Impeller materialPFA Lined - PVDF Lined - PP Lined
Type of impellerClosed
Nozzle positionEnd Suction
Type of ExecutionHorizontal
Type of installationUTN-L : Long-Coupled
UTN-BL: Close-Coupled
Pull-out designUTN-L: Back pull-out
HeatableNo
Type of connectionsFlanged
Flange ConnectionsUNI 1092-1/ISO 700S-1 PN 16, type B asolate ANSI 150
Suction characteristicsNon-priming
Type of lubricationUTN-L : Grease
Drive frequency50 Hz/ 60 Hz
Type of driveElectric motor
Maximum rated pressure @ 20ºCPN 16
Max. permissible fluid temperaturePP: -10ºC - > +70ºC
PVDF: -30ºC - > +100ºC
PFA: -50ºC - >+140ºC
Maximum Head @ 2900 RPM70m
Maximum flow rate @ 2900 RPM75 m3/h
Allowable Medium Viscosity Range1cSt - 200cSt
Maximum drive ratingUTN-BL: 1.1 kW (motor size 80)- >18.5 kW (motor size 160)
UTN-L: 0.75kW (motor size 80) - > 37 kW (motor size 200)
Maximum speed of rotation (RPM)3500
